Liquid Electric Heaters

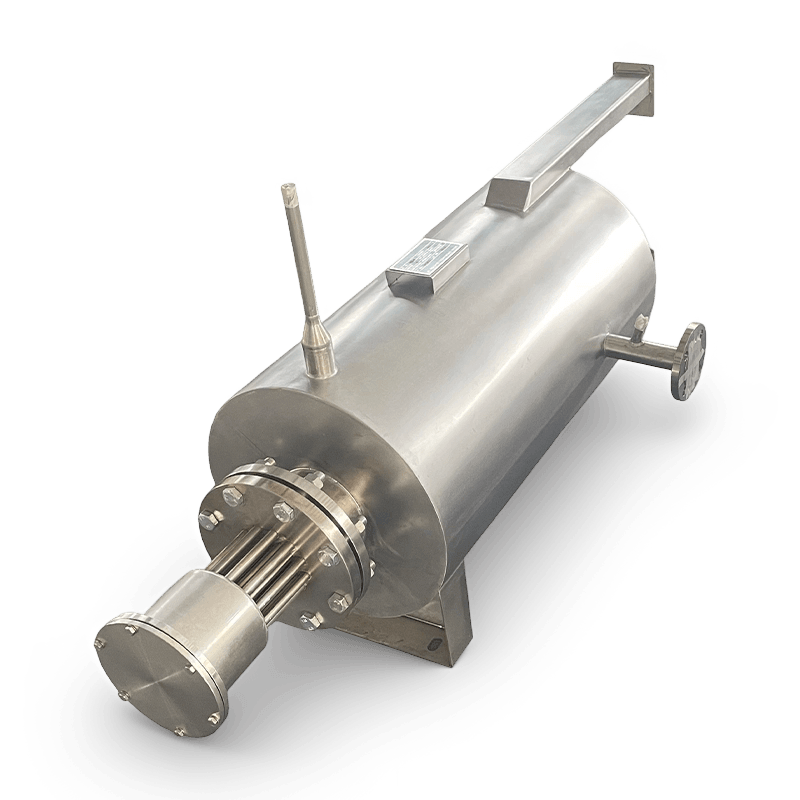

Thermal Oil Electric Heater

Thermal Oil Electric Heater is designed to heat thermal oil or other heat transfer fluids for indirect process heating. It transfers heat through a circulating thermal oil system, providing uniform heating and temperature control for industrial equipment. The system can operate at temperatures up to 350℃ and supports circulation or flange installation. Stainless steel heating elements are used, with custom power, voltage, dimensions, and connections available for different heating systems.

Specific Applications：

Chemical reactors and process equipment
Plastics and rubber processing
Food processing equipment
Asphalt and bitumen heating
Textile processing
Pharmaceutical production
Industrial thermal oil circulation systems

Core Functions:

Indirect Process Heating
The Thermal Oil Electric Heater heats thermal oil or heat transfer fluid, which then transfers heat to the target process without direct contact between the heating element and the product.

High Temperature Heating
The system supports operating temperatures up to 350℃ for industrial processes that require higher-temperature heat transfer.

Uniform Heat Transfer
Circulating thermal oil distributes heat through the system, helping provide consistent heating across connected process equipment.

Precise Temperature Control
PID control supports stable temperature regulation for processes with defined heating requirements.

Flexible System Integration
Circulation and flange installation options allow the heater to be integrated into different thermal oil heating systems.

Technical Specifications:

Parameter	Specification
Product Type	Thermal Oil Electric Heater
Medium Thermal	Oil / Heat Transfer Fluid
Element Material	Stainless Steel
Power	Custom
Voltage	Custom
Temperature	Up to 350℃
Installation	Circulation / Flange
Control	PID
Dimensions	Custom
Flange / Connection	Custom

OEM / ODM Customization:

Custom power, voltage, and dimensions
Custom heating element material and sheath
Custom flanges and connections
Custom PID control system
Custom circulation heating configuration
Private label and packaging
Samples and technical drawing support

Purchasing Information:

Item	Information
MOQ	1 unit (sample available), bulk orders welcome
Lead Time	7-15 days for standard models, 20-30 days for custom models
Payment	T/T, L/C, PayPal
Shipping	By sea, air, or express, FOB/CIF/DDP
Warranty	12 months

FAQ:

1. What is a Thermal Oil Electric Heater used for?
A Thermal Oil Electric Heater is used to heat thermal oil or heat transfer fluid for indirect process heating in chemical, plastics, food processing, textile, pharmaceutical, and other industrial systems.

2. What is the maximum temperature of the heater?
The Thermal Oil Electric Heater can support temperatures up to 350℃ according to the supplied configuration.

3. What type of heating medium can be used?
The heater is designed for thermal oil or other suitable heat transfer fluids used in thermal oil circulation systems.

4. How is the heating temperature controlled?
PID control is available for temperature regulation and can be configured according to the requirements of the heating system.

5. Can the Thermal Oil Electric Heater be customized?
Yes. Power, voltage, dimensions, heating element material, sheath, flanges, connections, and control systems can be customized. Samples and technical drawing support are also available.
