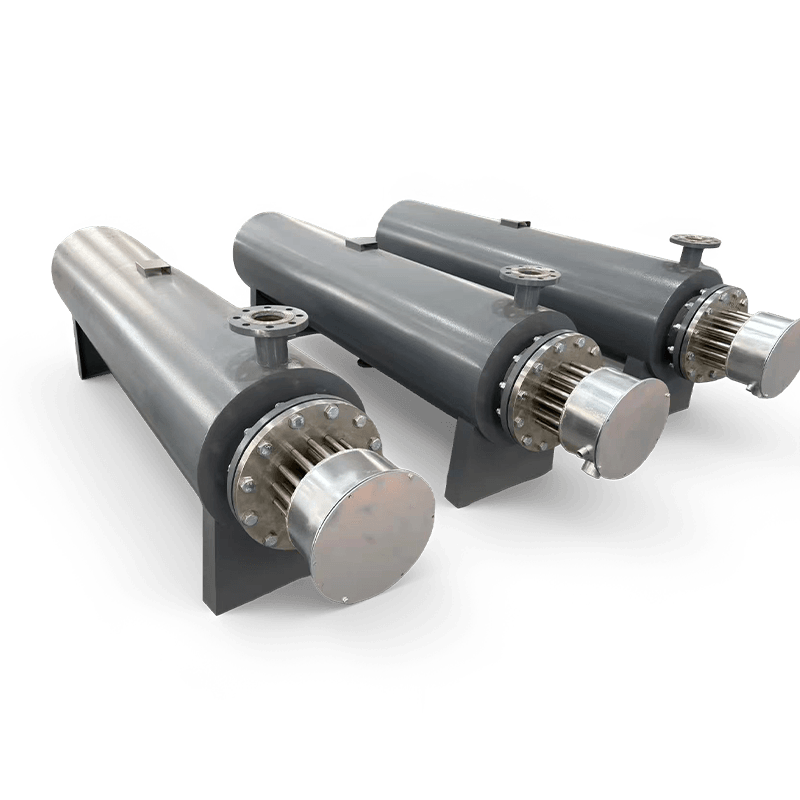

Steam Electric Heater is an electric heating device designed for steam superheating and reheating in industrial process applications. It provides controlled steam heating with operating temperatures of up to 600℃ and pressure ratings of up to 10 MPa. Stainless steel and Incoloy heating elements are available for different process conditions. The unit is designed with a pressure-vessel structure and can be customized in power, voltage, dimensions, connections, and control systems for integration with industrial steam equipment.
Steam Superheating and Reheating
Provides controlled heating of steam for superheating and reheating processes. The Steam Electric Heater can be configured according to the required steam conditions and process requirements.
High-Pressure Operation
The unit can be configured for pressure ratings of up to 10 MPa, supporting specified high-pressure steam applications.
High-Temperature Heating
The heating temperature can reach up to 600℃, making the unit suitable for industrial steam processes that require higher steam temperatures.
Precise Temperature Control
Supports PID and SCR control for controlled steam heating. The control method can be selected according to the temperature regulation requirements of the process system.
Pressure-Vessel Construction
The robust pressure-vessel structure is designed for steam heating applications involving elevated pressure and temperature. Stainless steel or Incoloy heating elements can be selected according to operating conditions.
| Parameter | Specification |
| Product Type | Steam Electric Heater |
| Medium | Steam |
| Element Material | Stainless Steel / Incoloy |
| Power | Custom |
| Voltage | Custom |
| Pressure | Up to 10 MPa |
| Temperature | Up to 600℃ |
| Control | PID / SCR |
| Dimensions | Custom |
| Flange / Connection | Custom |
The Steam Electric Heater can be customized according to steam heating requirements and equipment integration needs.
| Item | Details |
| MOQ | 1 unit (sample available), bulk orders welcome |
| Lead Time | 7-15 days for standard models, 20-30 days for custom models |
| Payment | T/T, L/C, PayPal |
| Shipping | By sea, air, or express, FOB/CIF/DDP |
| Warranty | 12 months |
1. What is a Steam Electric Heater used for?
A Steam Electric Heater is used for steam superheating and reheating in applications such as power generation, chemical processing, food and beverage production, textile manufacturing, and pharmaceutical processing.
2. What pressure and temperature can it support?
The specified pressure rating is up to 10 MPa and the heating temperature is up to 600℃. The actual operating conditions should be determined according to the process and equipment requirements.
3. What heating element materials are available?
The available heating element materials include stainless steel and Incoloy. Material selection can be based on the steam conditions and operating requirements.
4. What control options are available?
The available control options include PID and SCR for temperature regulation. The appropriate control configuration can be selected according to the process requirements.
5. Can the Steam Electric Heater be customized?
Yes. Power, voltage, dimensions, heating element material, sheath, flanges, connections, pressure-vessel structure, and control systems can be customized according to project requirements.
