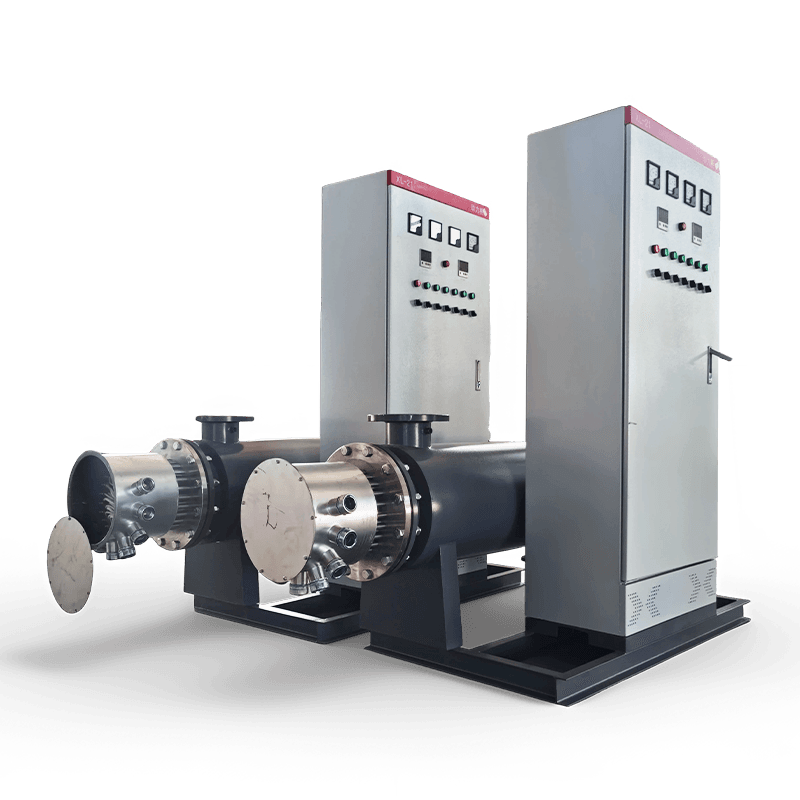

Helium Electric Heater is an electric gas heating device designed to heat helium for cryogenic and high-purity process applications. It provides precise and controlled heating while supporting applications where material compatibility and gas purity are important. Stainless steel and Incoloy heating elements are available for different operating conditions. Power, voltage, dimensions, heating element materials, flanges, connections, and control systems can be customized for integration with industrial and research equipment.
Precise Helium Heating
Provides controlled heating of helium gas for cryogenic and high-purity process applications. The heating configuration can be customized according to the required process conditions.
High-Purity Material Options
Heating elements are available in stainless steel or Incoloy for applications where material compatibility and helium purity are important considerations.
High-Temperature Operation
The Helium Electric Heater can provide heating temperatures of up to 800℃, supporting selected industrial, laboratory, and process heating applications.
Stable Temperature Control
Supports PID and SCR control for temperature regulation. The control method can be selected according to the requirements of the helium heating process.
Flexible Equipment Integration
Power, voltage, dimensions, heating element configuration, flanges, connections, and control systems can be customized to match different helium heating equipment and system layouts.
| Parameter | Specification |
| Product Type | Helium Electric Heater |
| Medium | Helium |
| Element Material | Stainless Steel / Incoloy |
| Power | Custom |
| Voltage | Custom |
| Temperature | Up to 800℃ |
| Control | PID / SCR |
| Dimensions | Custom |
| Flange / Connection | Custom |
The Helium Electric Heater can be customized according to helium heating requirements and equipment integration needs.
| Item | Details |
| MOQ | 1 unit (sample available), bulk orders welcome |
| Lead Time | 7-15 days for standard models, 20-30 days for custom models |
| Payment | T/T, L/C, PayPal |
| Shipping | By sea, air, or express, FOB/CIF/DDP |
| Warranty | 12 months |
1. What is a Helium Electric Heater used for?
A Helium Electric Heater is used to heat helium in applications such as cryogenic systems, semiconductor manufacturing, aerospace equipment, research laboratories, and medical MRI systems.
2. What is the maximum heating temperature?
The specified heating temperature is up to 800℃. The actual operating temperature should be determined according to the process requirements and equipment configuration.
3. What heating element materials are available?
The available heating element materials include stainless steel and Incoloy. Material selection can be based on the operating conditions and application requirements.
4. What control options are available?
The available control options include PID and SCR, which can be selected according to the required temperature control method.
5. Can the Helium Electric Heater be customized?
Yes. Power, voltage, dimensions, heating element material, sheath, flanges, connections, heating structure, and control systems can be customized according to project requirements.
