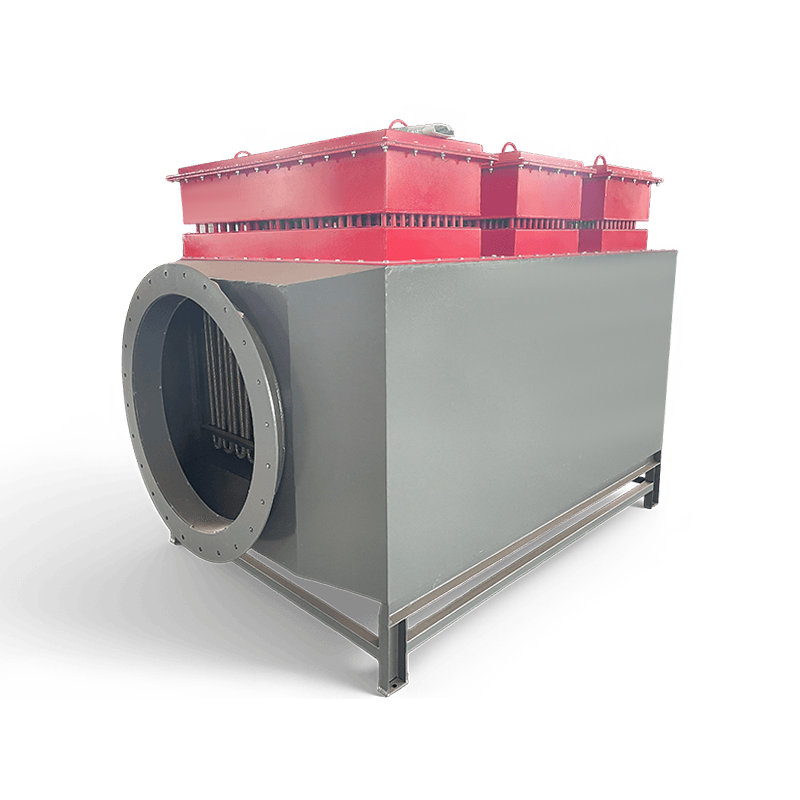

Air Electric Heater is an electric heating device designed for rapid and uniform air heating in HVAC, ventilation, and industrial process applications. It is available with a wide power range of 1-500 kW and supports custom voltage and frequency configurations. Duct, flange, and circulation installation options allow flexible integration with different equipment. Stainless steel and Incoloy heating elements are available for applications with different temperature and material requirements.
Rapid and Uniform Heating
Provides rapid and uniform air heating for HVAC, ventilation, and industrial process applications. Rated power is available from 1-500 kW to meet different heating requirements.
Flexible Temperature Control
Supports PID, SCR, and manual control for different process requirements. PID and SCR control can be configured according to the required temperature management method.
High-Temperature Heating
The heating temperature can reach up to 800℃, making the Air Electric Heater suitable for process air heating, drying, curing, and heat treatment applications.
Multiple Installation Options
Supports duct, flange, and circulation installation. Custom flanges, connections, and dimensions can be provided to match different equipment structures.
Durable Heating Elements
Heating elements are available in 304 stainless steel, 316L stainless steel, or Incoloy 800. The material can be selected according to the operating environment and temperature requirements.
| Parameter | Specification |
| Product Type | Air Electric Heater |
| Element Material | 304 / 316L Stainless Steel / Incoloy 800 |
| Rated Power | 1- 500 kW |
| Voltage | 220V / 380V / 440V / 480V |
| Frequency | 50 / 60 Hz |
| Temperature | Up to 800℃ |
| Installation | Duct / Flange / Circulation |
| Control | PID / SCR / Manual |
| Dimensions | Custom |
| Flange / Connection | Custom |
The Air Electric Heater can be customized to meet different equipment integration and project requirements.
| Item | Details |
| MOQ | 1 unit (sample available); bulk orders welcome |
| Lead time | 7-15 days for standard models, 20-30 days for custom models |
| Payment | T/T, L/C, PayPal |
| Shipping by sea, air, or express FOB/CIF/DDP | |
| Warranty | 12 months |
1. What is an Air Electric Heater used for?
An Air Electric Heater is used for heating air in HVAC and ventilation systems, air ducts, process equipment, drying and curing systems, heat treatment ovens, and food processing and packaging equipment.
2. What power range is available?
The rated power range is 1-500 kW, with custom power configurations available for different heating requirements.
3. Can the Air Electric Heater be customized?
Yes. Power, voltage, dimensions, heating element material, sheath, flanges, connections, and control systems can be customized. Private label and packaging are also available.
4. What installation methods are supported?
The available installation methods include duct, flange, and circulation. The configuration can be customized according to the equipment and installation requirements.
5. What is the maximum heating temperature?
The specified heating temperature can reach up to 800℃. The suitable configuration depends on the application and required operating conditions.
